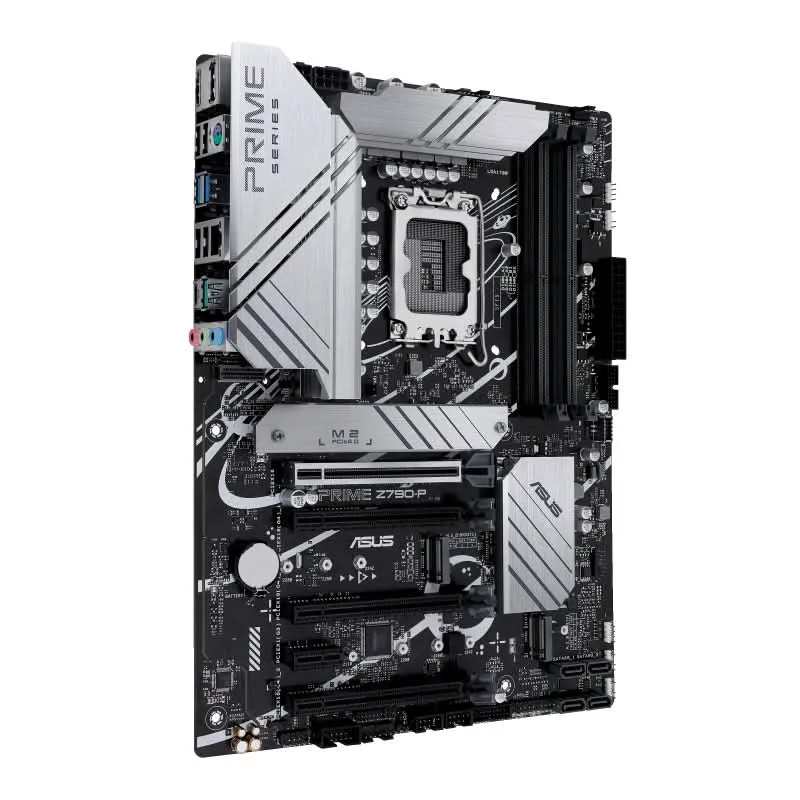

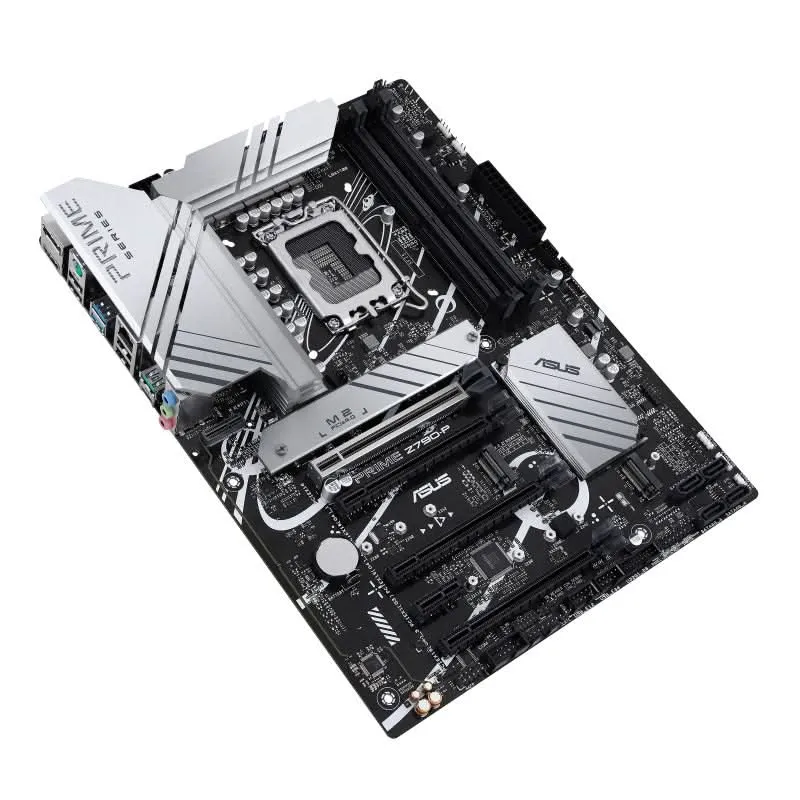

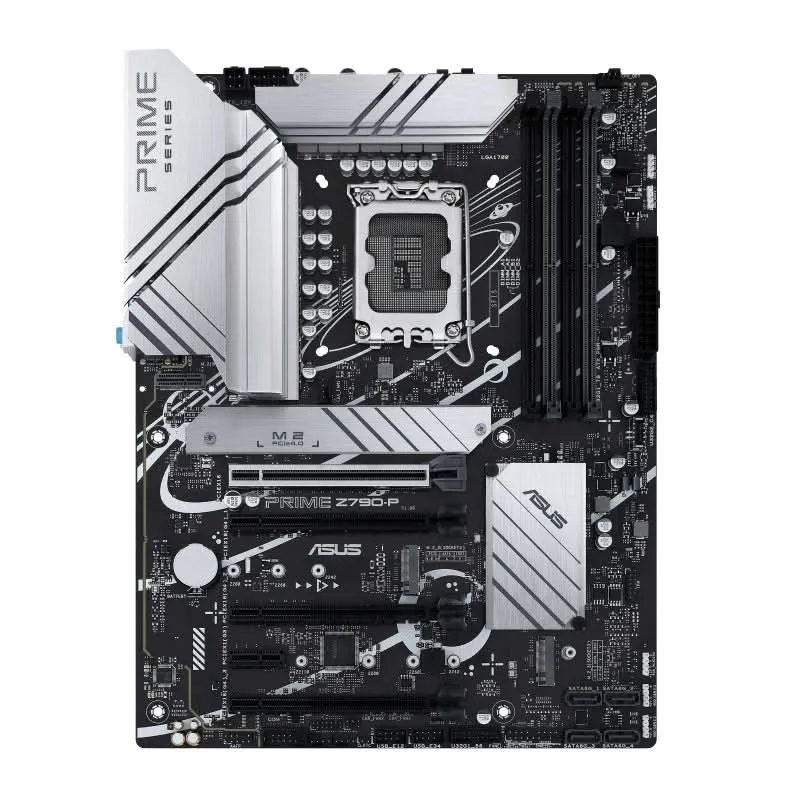

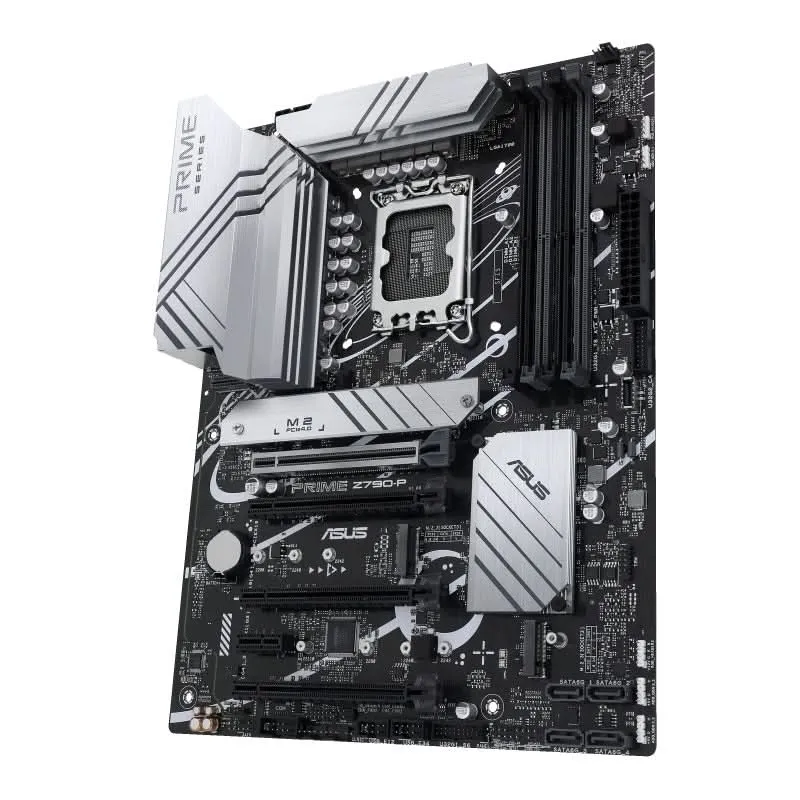

Product Details
＋
| CPU | IntelÆ Socket LGA1700 for 13th Gen IntelÆ Coreô Processors & 12th Gen IntelÆ Coreô, PentiumÆ Gold and CeleronÆ Processors |
| Supports IntelÆ Turbo Boost Technology 2.0 and IntelÆ Turbo Boost Max Technology 3.0 | |
| Chipset | IntelÆ Z790 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7200 /7000/6800/6600/6400/ 6200/ 6000/ 5800/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports IntelÆ Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration |
| Graphics | 1 x DisplayPort |
| 1 x HDMIÆ port | |
| Supports max. 4K@60Hz as specified in DisplayPort 1.4. | |
| Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | IntelÆ 13th & 12th Gen Processors |
| 1 x PCIe 5.0 x16 slot | |
| IntelÆ Z790 Chipset | |
| 3 x PCIe 4.0 x16 slots (support x4 mode) | |
| 1 x PCIe 3.0 x1 slot | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| * IntelÆ 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| IntelÆ Z790 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) | |
| 4 x SATA 6Gb/s ports | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe) |
| Wi-Fi module is sold separately. | |
| USB | Rear USB (Total 8 ports) |
| 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) | |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. | |
| USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth. | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

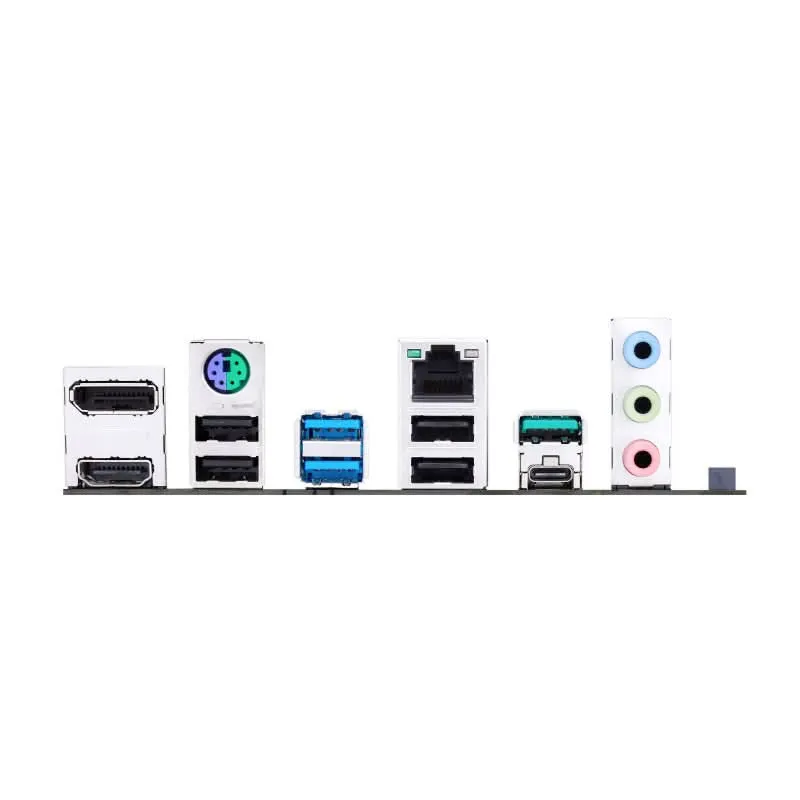

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CÆ) |
| 1 x USB 3.2 Gen 2 port (1 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIÆ port | |
| 1 x Vertical M.2 slot (Key E) | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| 1 x 4-pin 12V Power connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2 connector (supports USB Type-CÆ) | |
| 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 2 x Aura RGB headers | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 20-5pin System Panel header | |
| 1 x Thunderboltô (USB4Æ) Header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI VRM (- Digital power design with DrMOS) | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot Core | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-Slot | |
| Q-LED Core ASUS Thermal Solution | |
| Flexible M.2 heatsink | |
| VRM heatsink design | |
| ASUS EZ DIY | |
| ProCool Aura Sync | |
| Aura RGB headers | |
| Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Sync | |
| Fan Xpert 4 (with AI Cooling II) | |
| Power Saving AI Suite 3 | |
| TurboV EVO | |
| PC Cleaner | |
| DIGI VRM | |
| ASUS CPU-Z | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| BIOS | 192 (128 64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 1 x M.2 Rubber Package | |
| 2 x Screw packages for M.2 SSD | |
| Documentation | |
| 1 x ACC Express Activation Key Card | |
| 1 x User guide | |
| Operating System | WindowsÆ 11, WindowsÆ 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
| Warranty | 3 Years |
