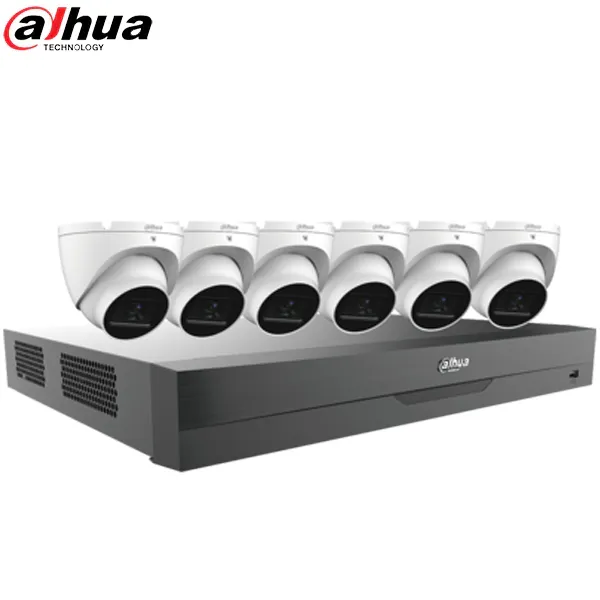

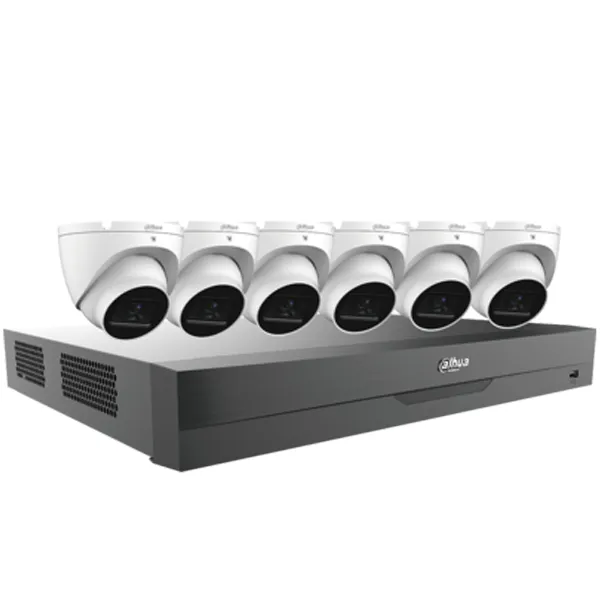

Name: Dahua / HDCVI DVR Kit / 8 Channels / 4K Penta-brid DVR / 6 x 5MP / 2.8mm lens / Eyeball Cameras / DH-C885E62A
SKU: 312210

Product Details ＋

DH-C885E62A

The Dahua HDCVI Security System provides the components to quickly install a video surveillance solution. The HDCVI cameras offer the clarity of 5 MP video with a 16:9 aspect ratio, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dahua's HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.

1/2.7-in. 5 MP Progressive-scan CMOS Sensor
5 MP at 25 fps Maximum Resolution, 2.8 mm Fixed Lens
16:9 Aspect Ratio for no Image Stretching
Maximum IR Length 30 m (98.43 ft), Smart IR
IP67 Ingress Protection
2 TB Pre-installed Hard Disk Drive
Eight-channel Penta-brid Recorder, Dual-streaming
Smart H.265 and Smart H.264 Dual Codec
5 MP at 12 fps or 4K at 7 fps Recording Resolution on All HDCVI
Channels
AI Coding Technology for High-quality Human/Vehicle Video
Perimeter Protection and Smart Motion Detection (SMD)

Technical Specification

A51BJ02 HDCVI Camera
Camera
Image Sensor	1/2.7-in. CMOS
Effective Pixels	2880 (H) x 1620 (V), 5 MP
Scanning System	Progressive
Electronic Shutter Speed	1/30 s to 1/100,000 s
Minimum Illumination	Color: 0.01 lux at F1.6, 30 IRE 0 lux with IR on
S/N Ratio	More than 65 dB
IR Distance	Up to 30 m (98.43 ft)
IR On/Off Contro	Auto, Manual
IR LEDs	1
Lens
Lens Type	Fixed Lens
Mount Type	M12
Focal Length	2.8 mm
Max Aperture	F1.6
Angle of View	Horizontal: 111° Vertical: 58° Diagonal: 132°
Close Focus Distance	900 mm (35.43 in.)
DORI¹ Distance - Detect (8 ppf)	63.60 m (208.70 ft)
DORI¹ Distance - Observe (19 ppf)	25.40 m (83.30 ft)
DORI¹ Distance - Recognize (38 ppf)	12.701 m (41.70 ft)
DORI¹ Distance - Identify (76 ppf)	6.40 m (21 ft)
Installation Angle
Range	Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360°
Video
Resolution	5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 480)
Frame Rate	5 MP at 25 fps 4 MP at 30 fps 1080p at 30 fps
Video Output	One (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable
Video Transmission²
RG-59/U Coax	720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 5 MP: 500 m (1640.42 ft)
RG-6/U Coax	720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 5 MP: 700 m (2296.59 ft)
CAT 6 UTP (balun required)	720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 5 MP: 300 m (984.25 ft)
Day/Night	Auto (ICR)
OSD Menu	Multi-language
BLC Mode	BLC, HLC, DWDR
WDR	Digital WDR
Gain Control	Auto, Manual
Noise Reduction	2D NR
White Balance	Auto, Manual
Smart IR	Auto, Manual
Certifications
Safety	UL60950-1 CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014, EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010 A1:2015, EN 55035:2017, EN50130-4:2011 A1:2014, EN 62368-1:2014 A11:2017
Electrical
Power Supply	12 VDC ±30%
Power Consumption	Maximum 3.2 W (12 VDC with IR on)
Environmental
Operating Conditions	–40° C to 60° C (–40° F to 140° F), Less than 95% RH
Storage Conditions	––40° C to 60° C (–40° F to 140° F), Less than 95% RH
Ingress Protection	IP67
Construction
Casing	Metal
Dimensions	ø94.0 mm x 85.60 mm (ø3.70 in. x 3.37 in.)
Net Weight	0.31 kg (0.68 lb)
Gross Weight	0.44 kg (0.97 lb)
X82B2A2 HDCVI DVR
System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Interface
Analog Camera Input	Eight (8) Channels, BNC
HDCVI	8 MP, 6 MP, 5 MP, 4 MP, 1080p, 720p
AHD	8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p
TVI	8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p
CVBS	NTSC
IP Camera Input	8 8 Channels, each channel up to 8 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.)
Audio	Input: Four (4) Channels, RCA Output: One (1) Channel, RCA
Two-way Talk	Audio Input Channel 1 In/ Audio Output, RCA
Recording
Compression	AI Coding, Smart H.265 , H.265, Smart H.264 , H.264
Recording Resolution	8 MP, 6 MP, 5 MP, 4K-N, 4 MP, 3 MP, 4M-N, 1080p, 720p, 960H, D1, CIF
Record Rate
Main Stream	8 MP at 7 fps, 6 MP at 10 fps, 5 MP at 12 fps 4K-N, 4 MP, 3 MP at 15 fps 4M-N, 1080p, 720p, 960H, D1, CIF at 30 fps
Sub Stream	960H at 15 fps or D1, CIF at 30 fps
Maximum Incoming Bandwidth	128 Mbps
Bit Rate	32 Kbps to 6144 Kbps per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering, Alarm, Stop
Record Interval	1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s
Audio Compression	G.711a, G.711Mu, PCM
Audio Sample Rate	8 KHz, 16 bits per Channel
Audio Bit Rate	64 Kbps per Channel
Display
Interface	One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080)
Spot Output	HDMI or VGA, configurable (HDMI: 1920 x 1080,1280 x 1024, 1280 x 720 VGA: 1920 x 1080,1280 x 1024, 1280 x 720)
Native Output Resolution - HDMI	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720
Native Output Resolution - VGA	1920 x 1080, 1280 x 1024, 1280 x 720
Maximum Playback Decoding	Eight (8) Channels of 4 MP/3 MP at 15 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps Four (4) Channels of 4K at 7 fps Four (4) Channels of 6 MP at 10 fps Four (4) Channels of 5 MP at 12 fps Four (4) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps
Multi-screen Display
IP extension mode disabled	1/4/8/9
IP extension mode enabled	1/4/8/9/16
On-screen Display	Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Network
Interface	One (1) RJ45 (1000 Mbps) Port
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Maximum User Access	128 Users
Mobile Operating System	IOS, Android
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering, and Diagnosis
Alarm Input	Eight Channels
Relay Output	Three (3) Channels
Playback and Backup
Playback	1/4/9
Search Mode	Time/Date, Alarm, MD and Exact Search (accurate to 1 second)
Playback Function	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	Two (2) SATA Ports, up to 10 TB capacity for each disk Kit ships with a 2 TB Hard Disk Drive
Auxiliary Interface
USB	One (1) USB 2.0 Port and One (1) USB 3.0 Port
RS485	One (1) Port for PTZ Control
Electrical
Power Supply	12 VDC, 4 A
Power Consumption	< 10 W, without HDD
Construction
Dimensions
HDCVI DVR	1U, 375.0 mm x 287.15 mm x 53.0 mm (14.80 in. x 11.31 in. x 2.09 in.)
with PFH101 Rack Mount Tray	482.6 mm x 287.15 mm x 53.0 mm (19.0 in. x 11.31 in. x 2.09 in.)
Net Weight,	1.60 kg (3.50 lb)
Gross Weight	3.0 kg (6.60 lb)
Installation	Desktop or Rack-mount
Environmental
Operating Conditions	–10° C to 55° C ( 14° F to 131° F), 0% to 90% RH
Storage Conditions	–20° C to 70° C (–4°F to 158° F), 0% to 90% RH
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others
Certifications
Safety	UL 62368-1 EN 60950-1 IEC 60950-1
Electromagnetic Compatibility (EMC)	FCC CFR 47 Part 15 Subpart B EN 61000-3-2 EN 61000-3-3 EN 55032 EN 50130 EN 55024

1. The Analytics functions are disabled when the additional IP channels are active. The DVR is capable of processing two (2) channels of Perimeter Protection, one (1) channel of Perimeter Protection and eight (8) channels of SMD, or 16 channels of SMD at one time
