Product Details
＋
Experience Superior Sound and Navigation with the new Dynavin 9 Plus!
Fitment Information

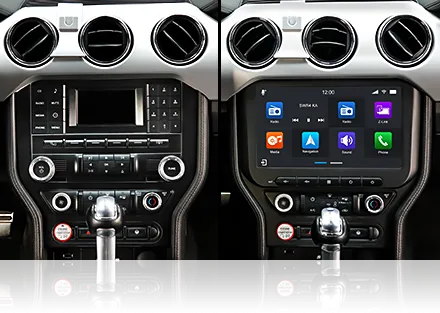

- Ford Mustang (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023)
- Base Models with 4" Factory Screen
- Premium Models with 8" Factory Screen
- Select if your Mustang is base model or premium model when ordering
Specs & Features
- Plug and Play!

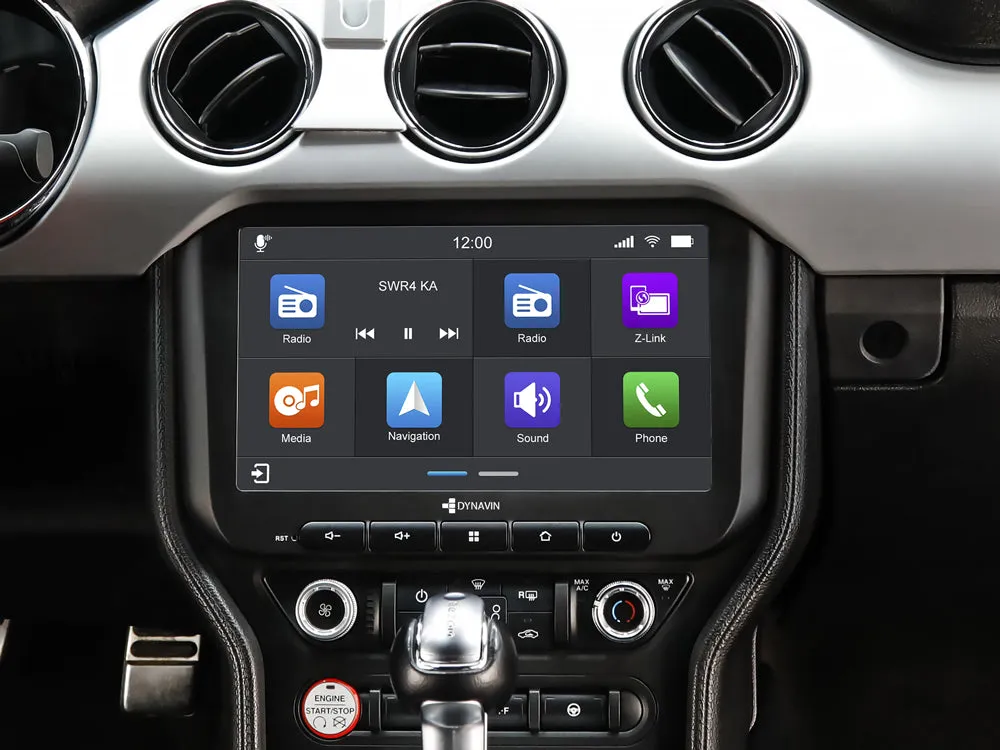

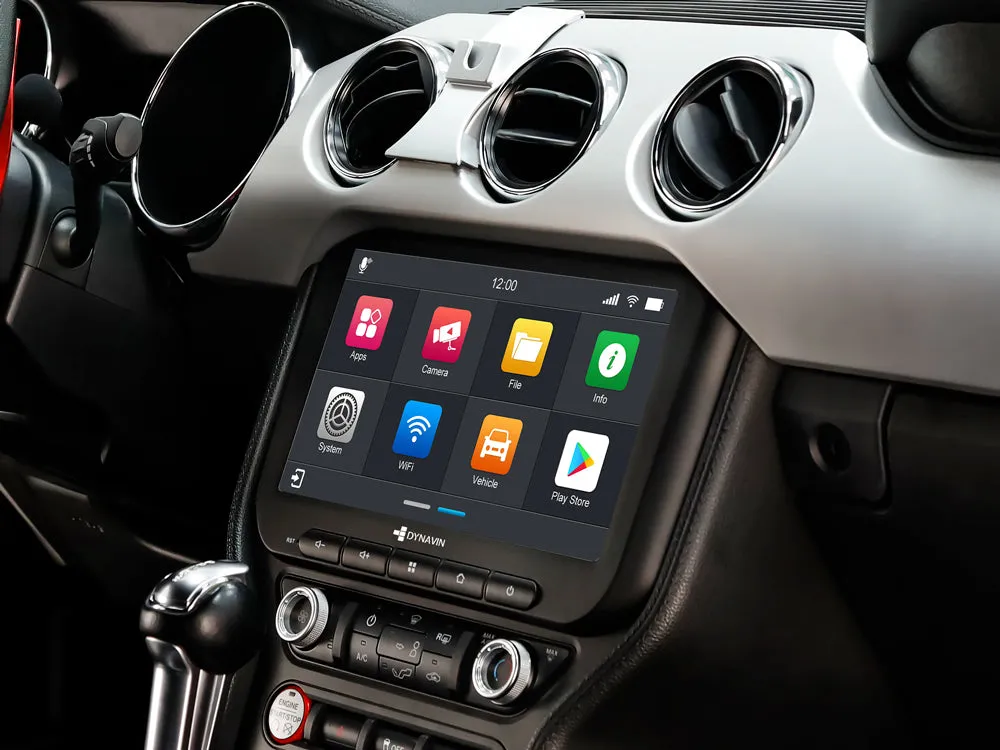

- Premium 10.1" / 16:9 high resolution capacitive touchscreen (1280 x 720 pixels)
- Android OS. Choose between 32gb or 160gb app storage capacity

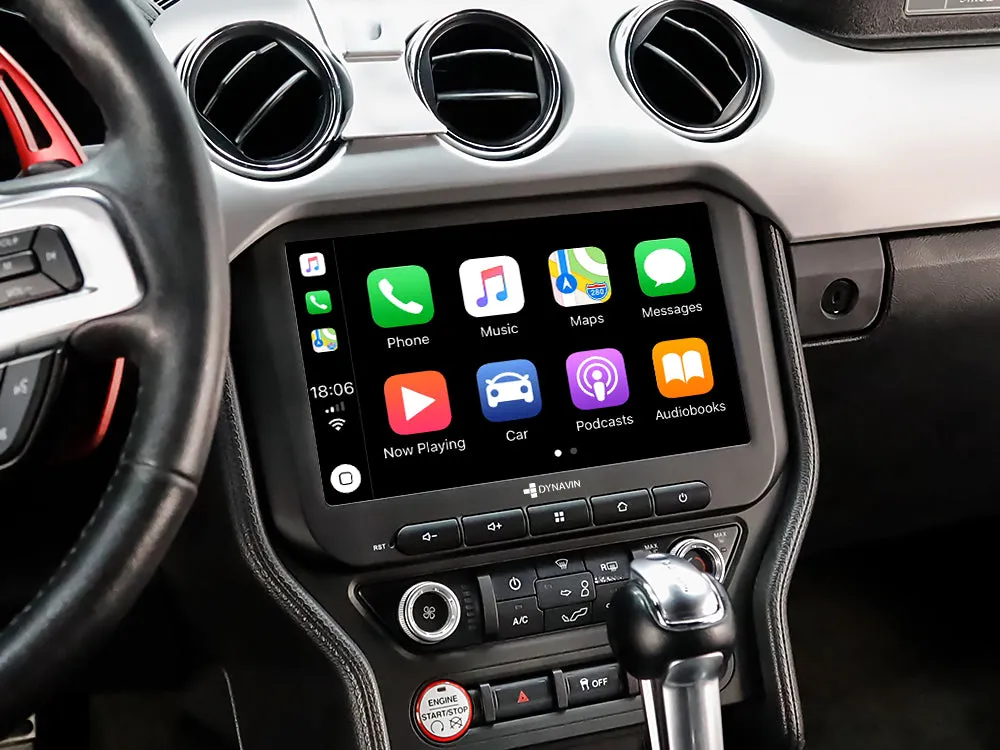

- Wireless Apple CarPlay

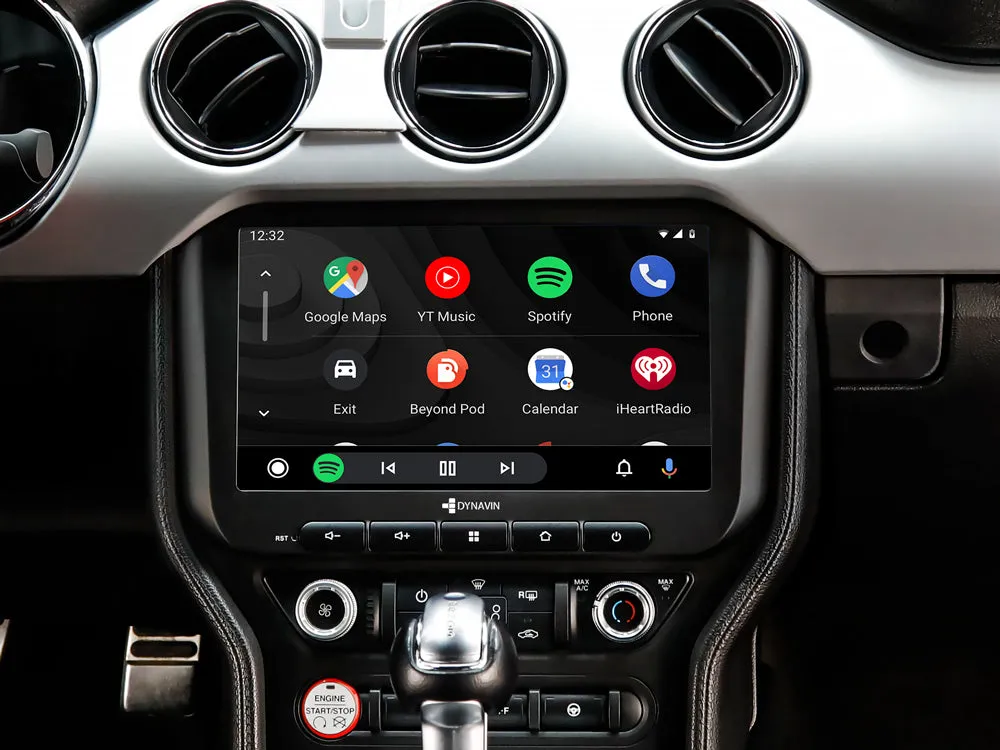

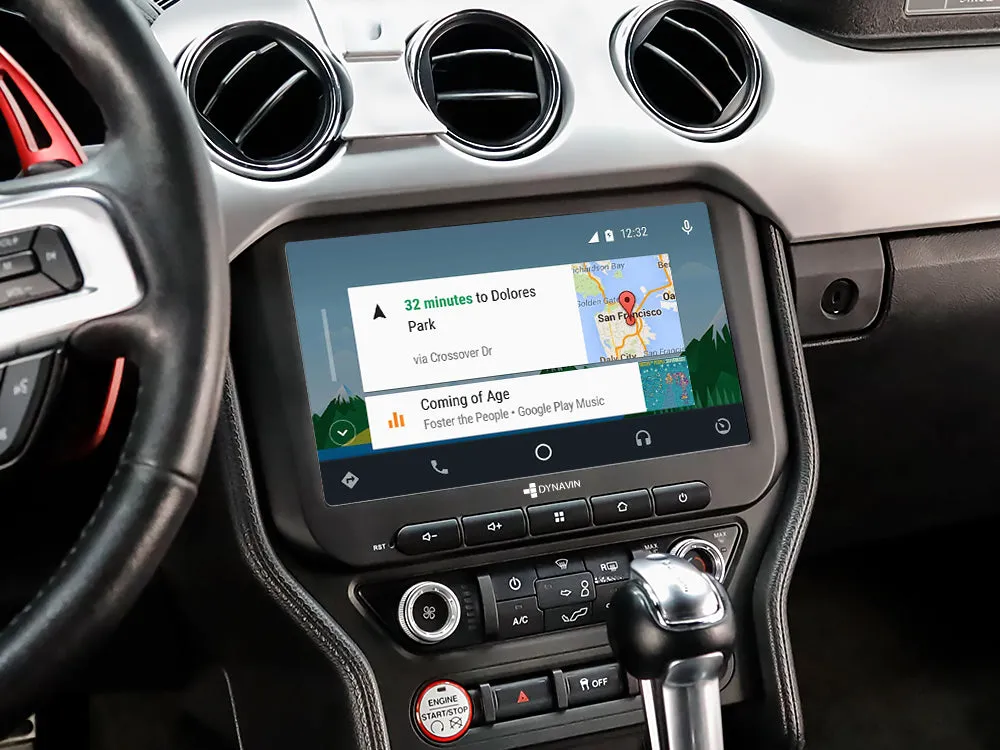

- Wired Android Auto
- Smartphone screen-mirroring
- Google Play Store preinstalled. Connects to the internet via built-in WiFi module.

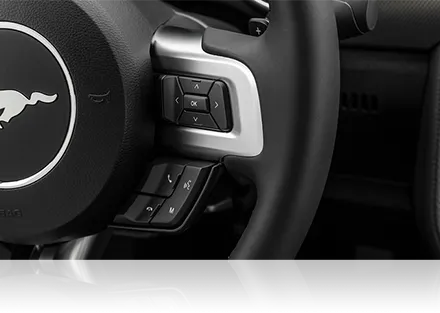

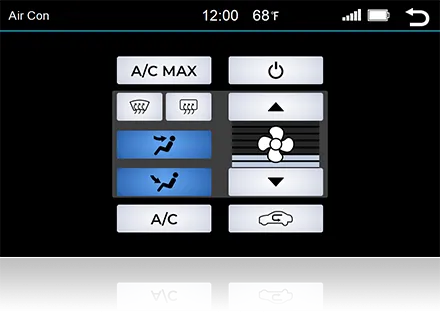

- Supports steering wheel controls, air conditioning information on the screen, outside temperature on the display and the factory sound system. Integrated with parking sensors (if equipped).
- Bluetooth for audio streaming and hands-free phone calls via smartphone (Android/Apple). External microphone included.
- Maintains or improves sound quality! High quality sound processor compatible with all audio systems both factory and aftermarket including DSP. 9-band EQ, time correction, and more. FM RDS tuner with DSP noise-masking and 15 preset stations.
- AV input/output for aftermarket subs/amps, etc.
- Multimedia player by USB connectivity

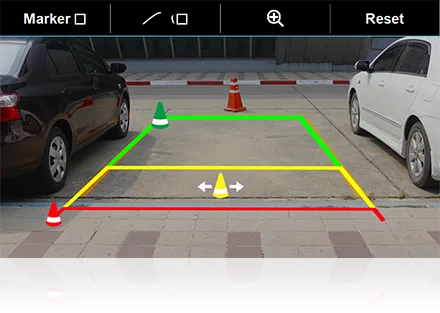

- Integrates with the factory camera or with universal aftermarket backup/front cameras (factory camera adapter included)
- Replaces Sync (if-equipped) with Apple's Siri or Google Assistant (depending on your smartphone). Compatible with or without Sync.
- SiriusXM compatible with SXV300 Tuner (plug-and-play) sold separately (does not integrate with factory SiriusXM).
- Customizable boot logo. Make any image your start up screen!

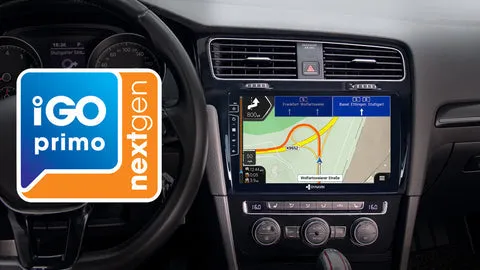

- Built-in iGO Primo GPS navigation software with 3D view and premium POI
- Periodic firmware updates available
- One year warranty through Dynavin North America - Fresno, CA
Product Description
General
SOUND TUNING
- Maximum output power: 4 x 45 W
- Adjustable subwoofer level
- Subwoofer, Bass, Middle, Treble phase selectable
- Equalizer Presets: Pop, Rock, Classical

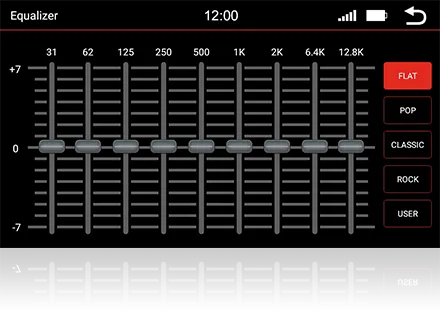

- 9-band parametric equalizer
- Fader and balance

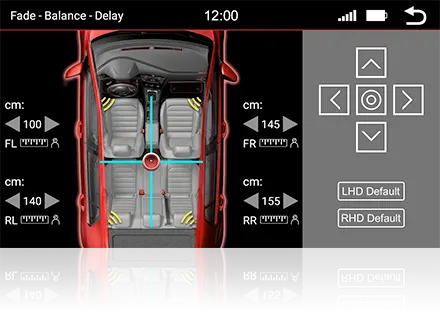

- Digital time correction
RADIO
- FM frequency range: 87.5 – 108.0 MHz
- AM frequency range: 530 – 1710 KHZ
- FM Utility Sensitivity: 5-6 db
- FM Stop Sensitivity: 22 db
- AM stop sensitivity: 21 db
- With left and right stereo channels
- Signal to noise ratio: 56 db
- Manual station storage for 15 stations
- RDS functions: AF, TA, broadcast text
- Automatic station tracking function
- High Cut high frequency attenuation function
- Support for changing FM/AM memory station pictures
- Optional radio antenna power on/off
GPS NAVIGATION
- Maps: North America
- Menu languages: 28 languages
- Advanced address search
- Postal/zip code search
- Free search
- Search with word pieces
- Extended POI functions
- Smart routes: use of historical traffic data
- Fast route calculation
- Extended route planning
- Map display: 2D top view, 2D north orientation, 3D
- 3D city maps: 3D building views
- Display of elevation profiles
- 3D motorway junctions: 3D display of motorway junctions
- Tunnel mode
- Highway mode
- Navi Mix mode
- Online Map Update via website
- Free map update after the first registration on naviextras.com
GPS
- GPS antenna included
- GPS reception frequency 1,575.42 ± 1 MHz
- GPS reception sensitivity -165 dB max
- Positioning accuracy: 10 m, 2D RMS
- Data update rate: 1 HZ
- Recapture time: 0.1 s on average
A2DP
- BT audio streaming from cell phone
- Display song title/lyrics/composer/vocalist
- Steering wheel can control up/down song/volume level
- Song title/lyrics can be displayed on the dashboard
