Product Details
＋

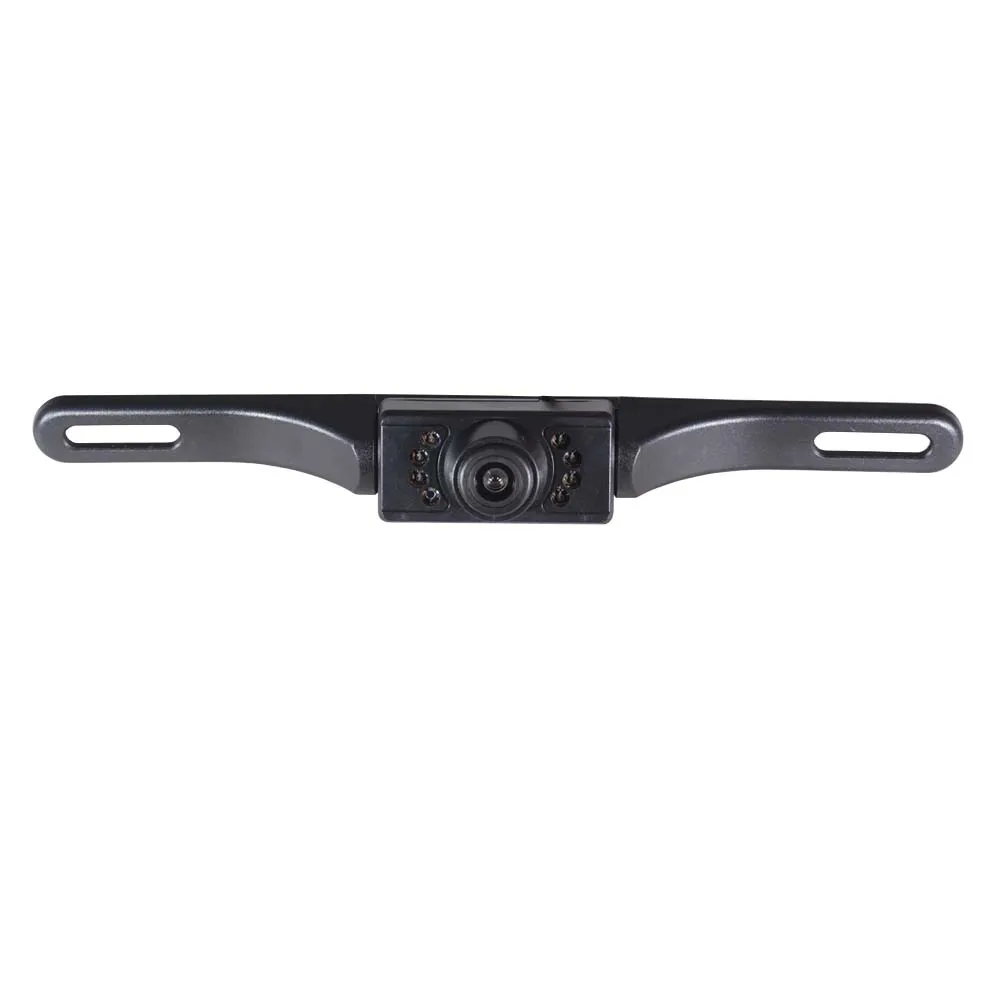

Freeman's Car Stereo Backup Camera
Highlights

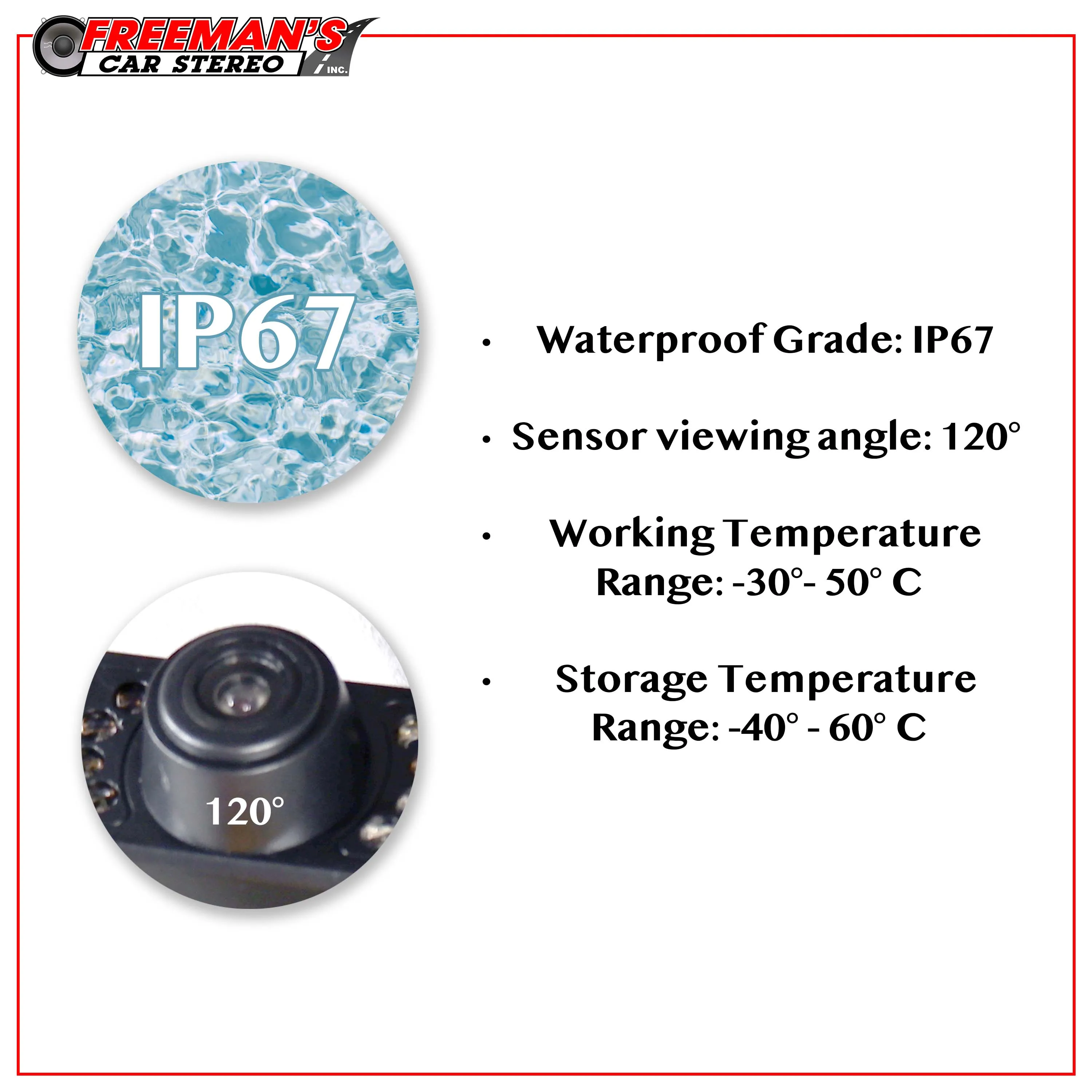

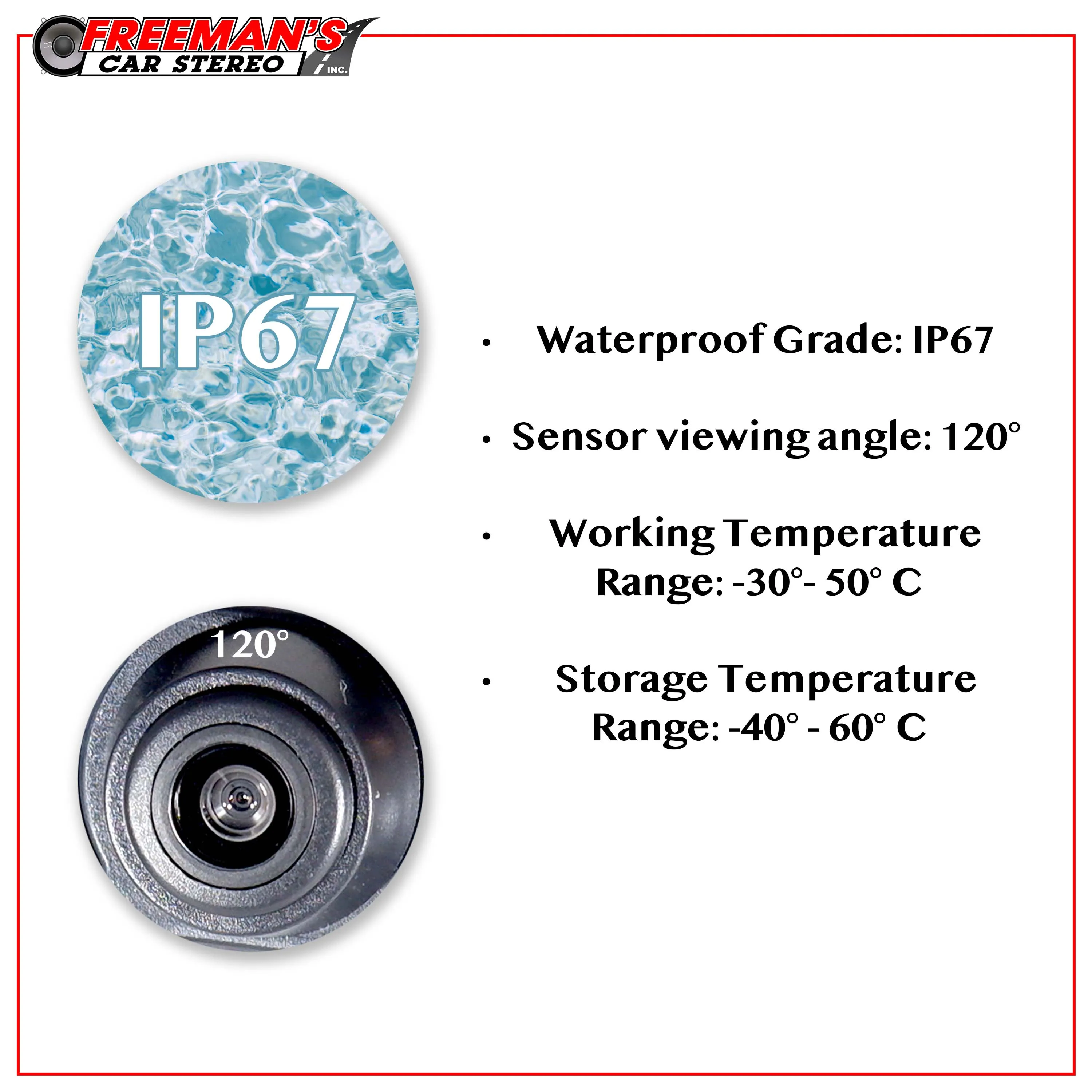

Camera has a weatherproof grade of IP67 which makes it completely protected from dust and protected against the effects of temporary immersion between 15 cm and 1 m of water for a test duration of 30 minutes.

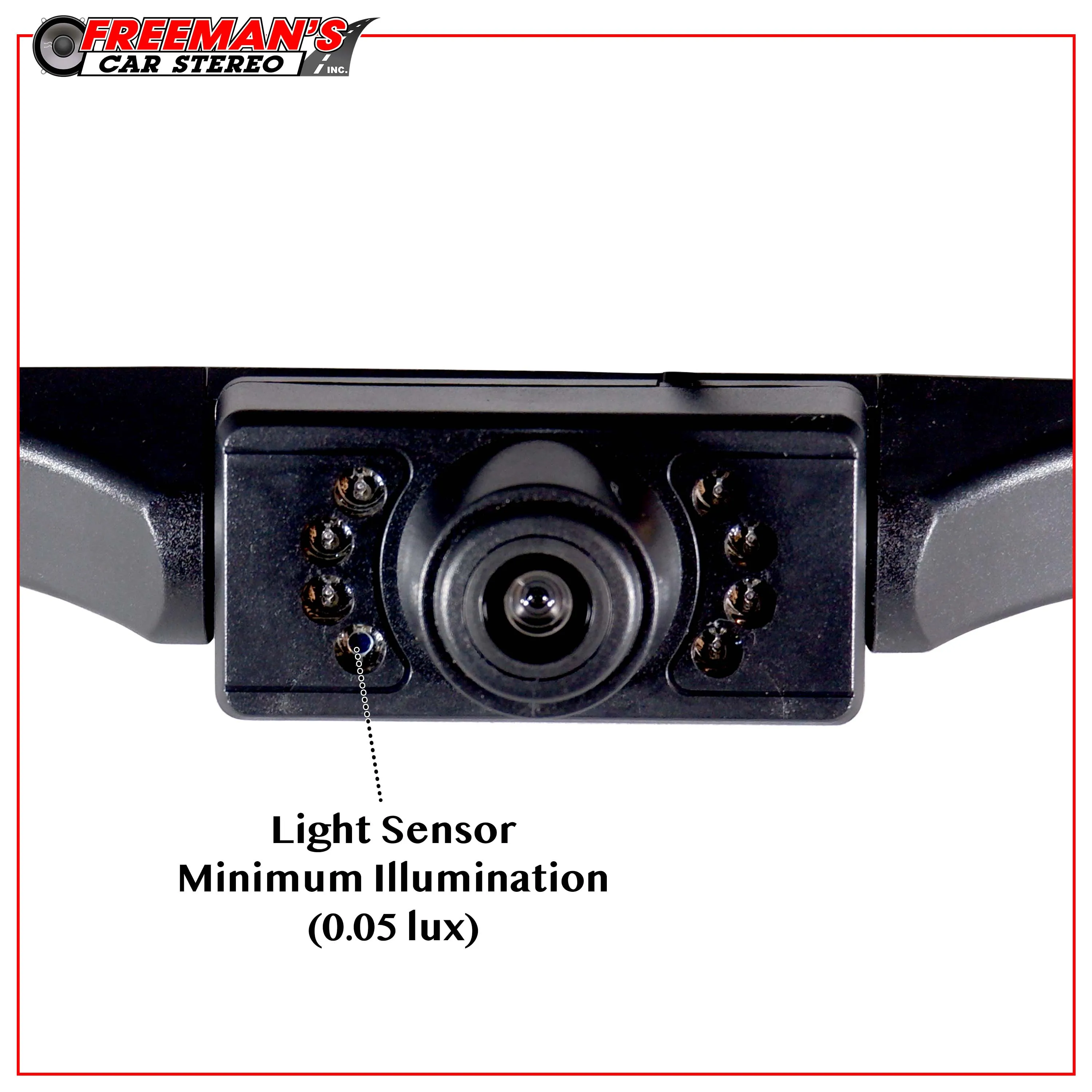

The scene is always lit up and works with a minimum of 0.05 lux. Camera has a sensor viewing angle of 120°

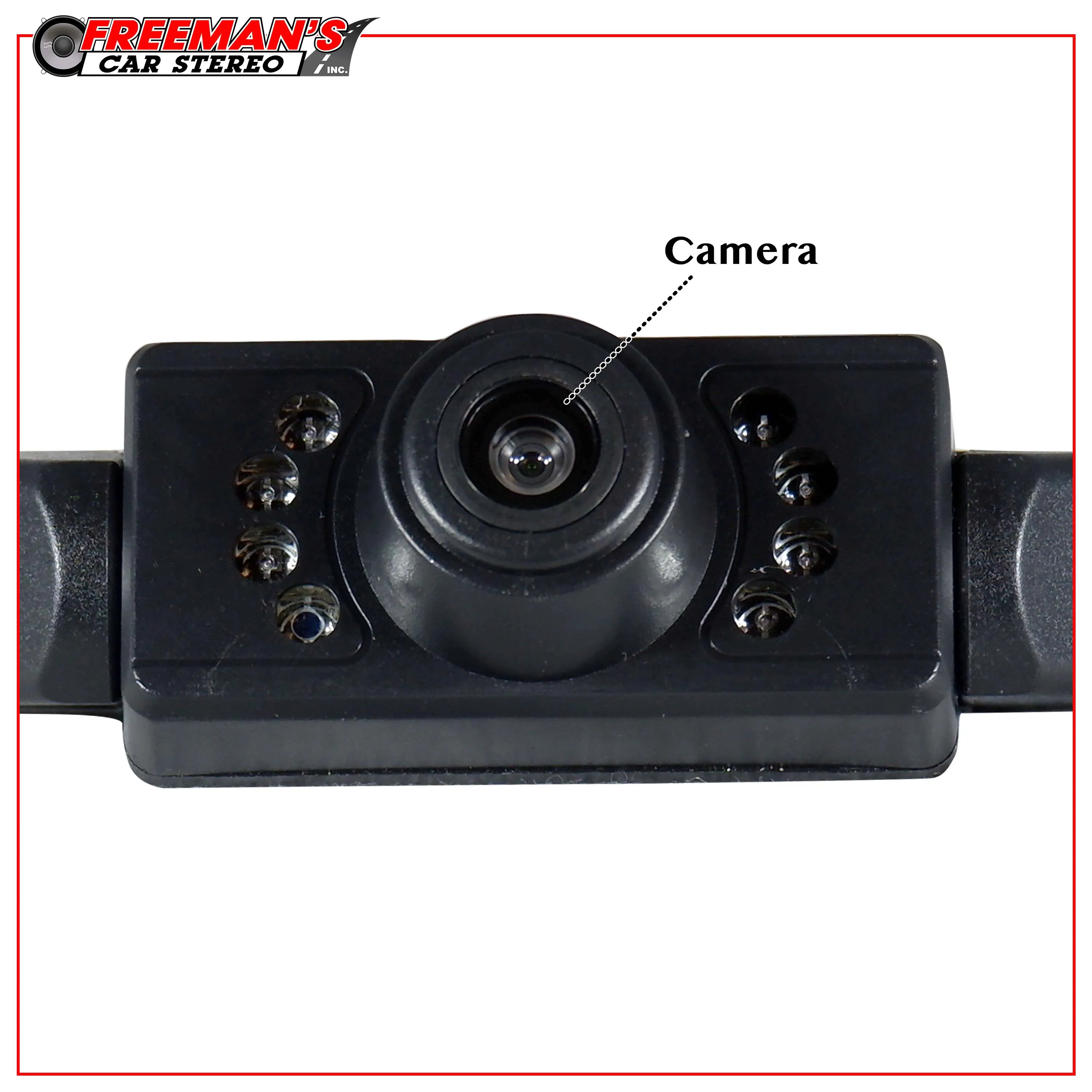

- Wide-Angle camera lens
- Waterproof and Anti-mist.
- Anti-shake
Specifications
| Image Sensor | PC1030 1/4 COLOR CMOS |
| Signal System | NTSC / PAL can be chosen |
| Effective Pixel | PAL: 648(H)× 488(V) NTSC: 648(H)× 488(V) |
| Resolution | 800 px x 480 px |
| Lens Angle | 120 ° |
| Minimum intensity of illumination | 0.05 lux |
| Video Output | 1.0 the vp, 75 Ohm-p |
| AGC | Automatic |
| Signal to Noise Ratio | more than 48dB |
| White Balance | Automatic |
| Backlight Compensation | Automatic |
| Current Consumption | Max 95mA |
| Power Consumption | DC12V, ≤0.5W |

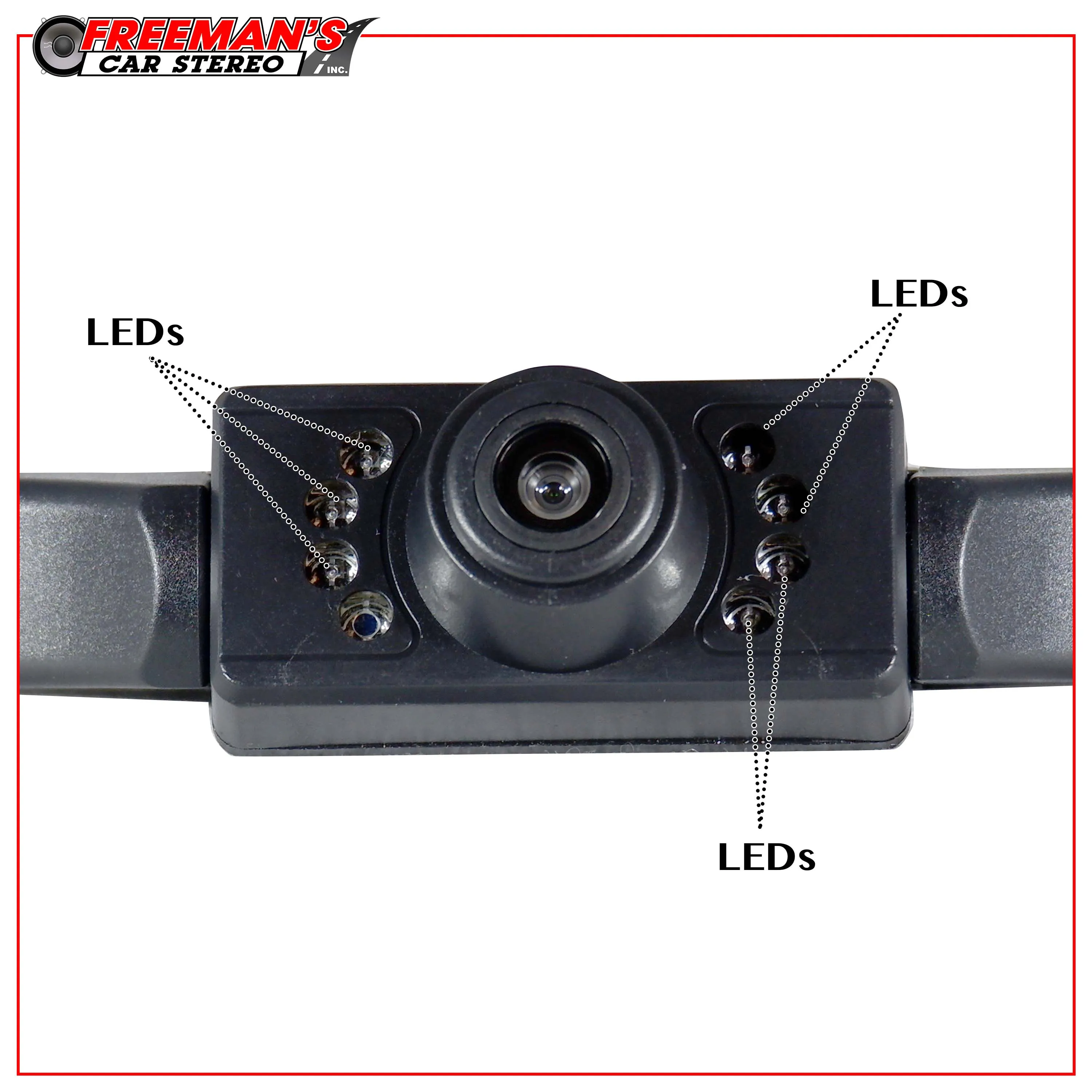

| Night Vision Distance | 0 - 5 meters |
| Working Temperature | 20 ° C-from 70 ° C,(humidity RH95 biggest %) |
| Storage Temperature | -40 ° C ~ 80 ° C, (humidity RH95 biggest %) |
Included With Camera

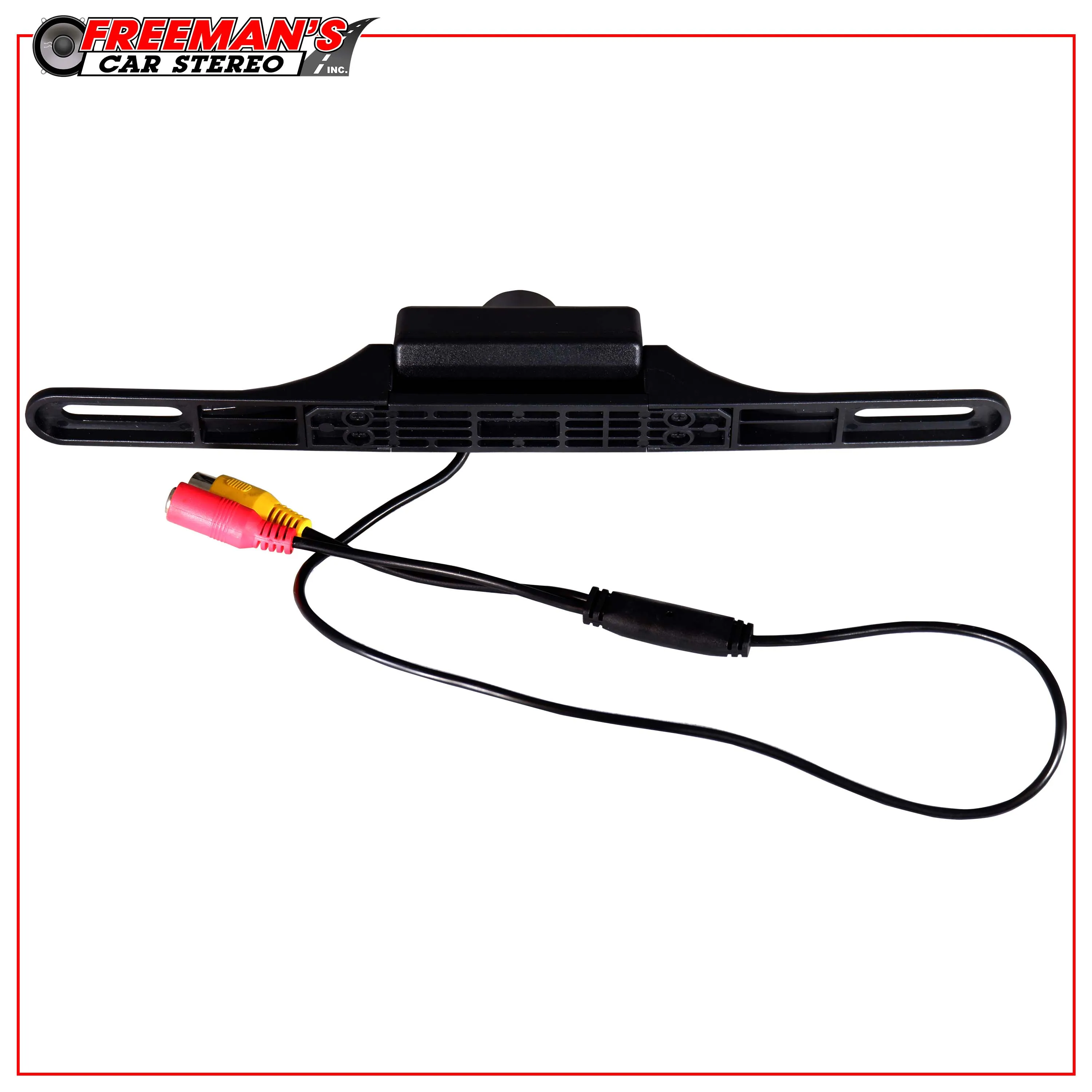

- x1 Car Rear Camera

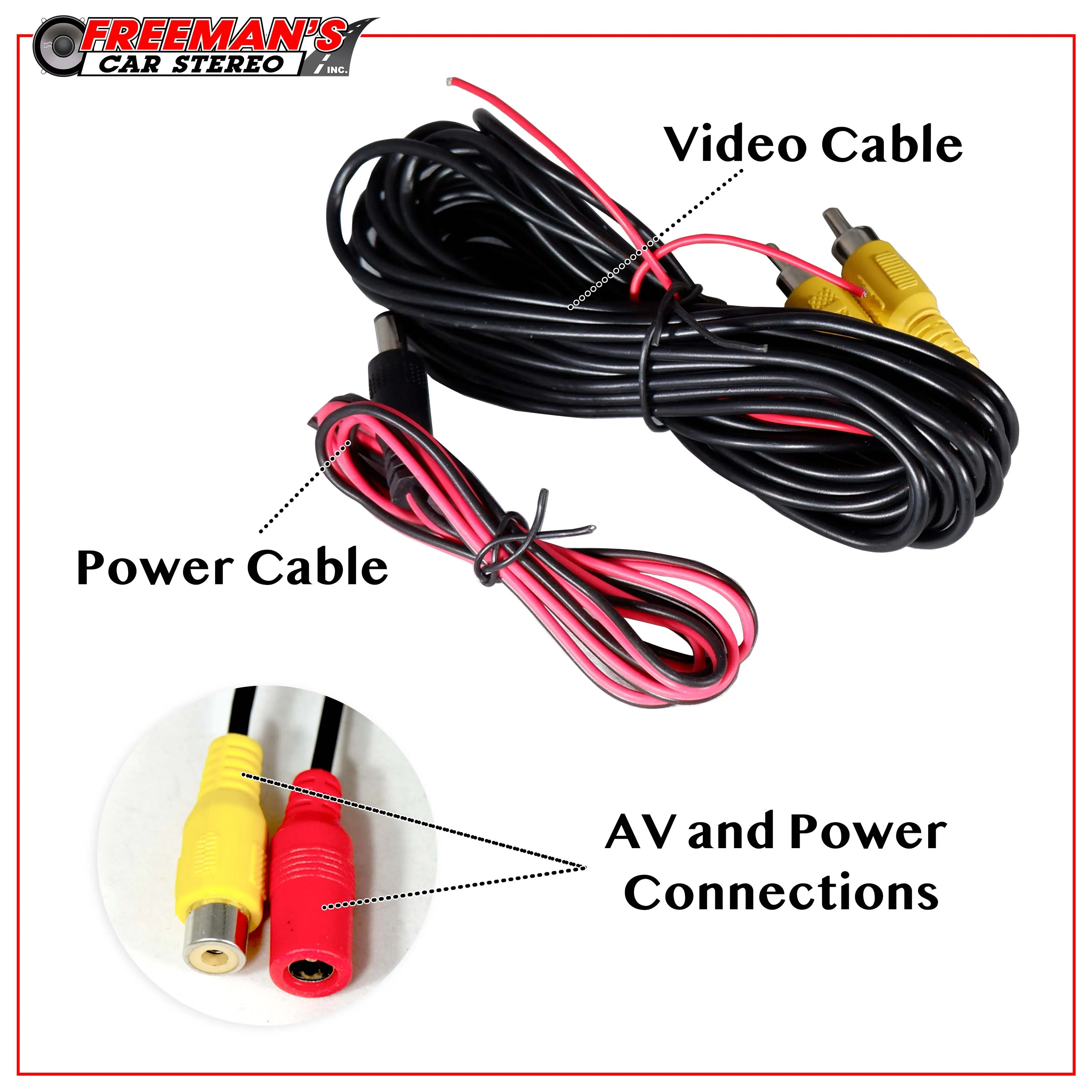

- x1 Video Cable
- x1 Power Cable
- x1 User's Manual

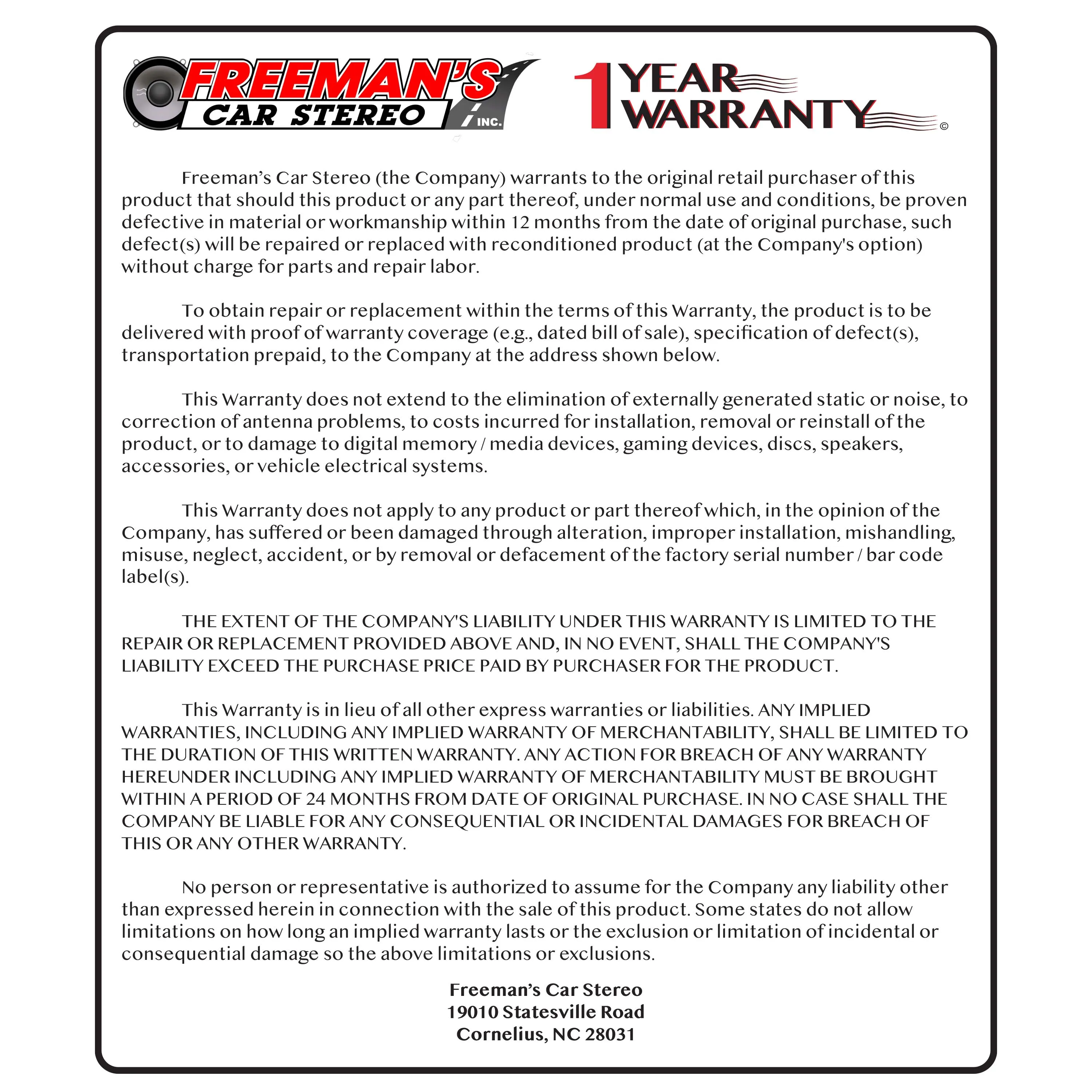

- x1 Warranty Card
