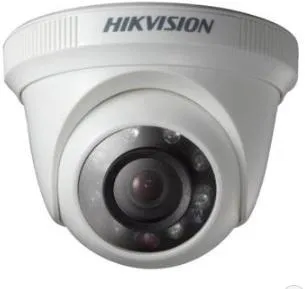

HIKVISION Analog HD 720P IR Turret Camera (DS-2CE56C0T-IRPF)
Product Description
- 1.0 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- Up to 20m IR distance
- Switchable TVI/AHD/CVI/CVBS
Specification
Camera
Image Sensor: 1MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1296(H)x732(V)
Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens Mount: M12
Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
General
Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±15%
IR Range: Up to 20m
Dimension: Φ89.5 × 69.8 mm (Φ3.52” × 2.75”)
Weight: 250 g
