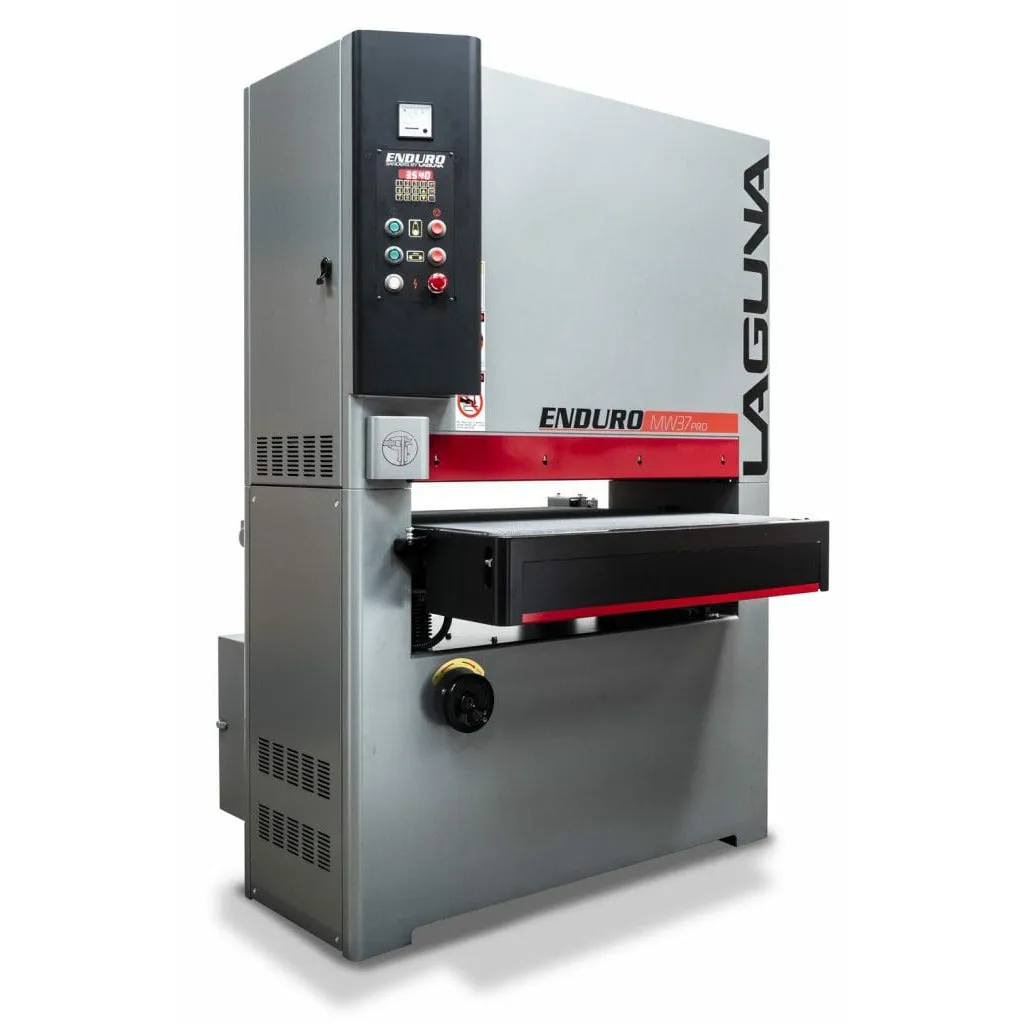

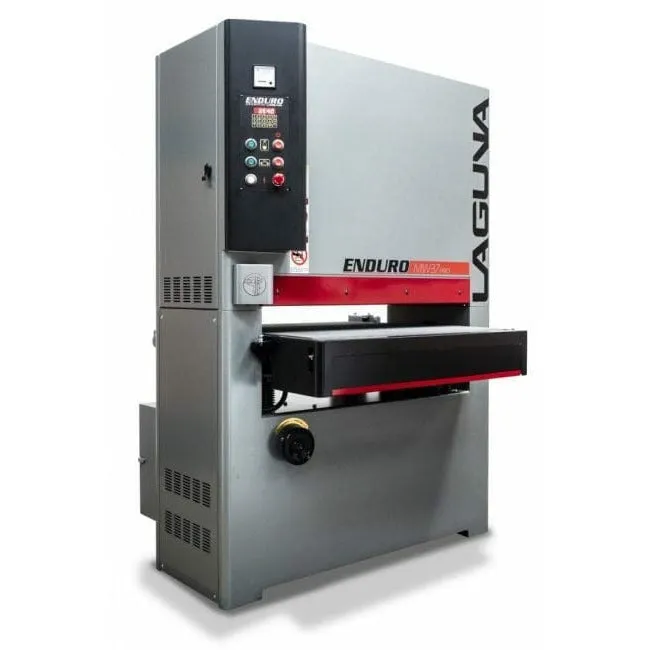

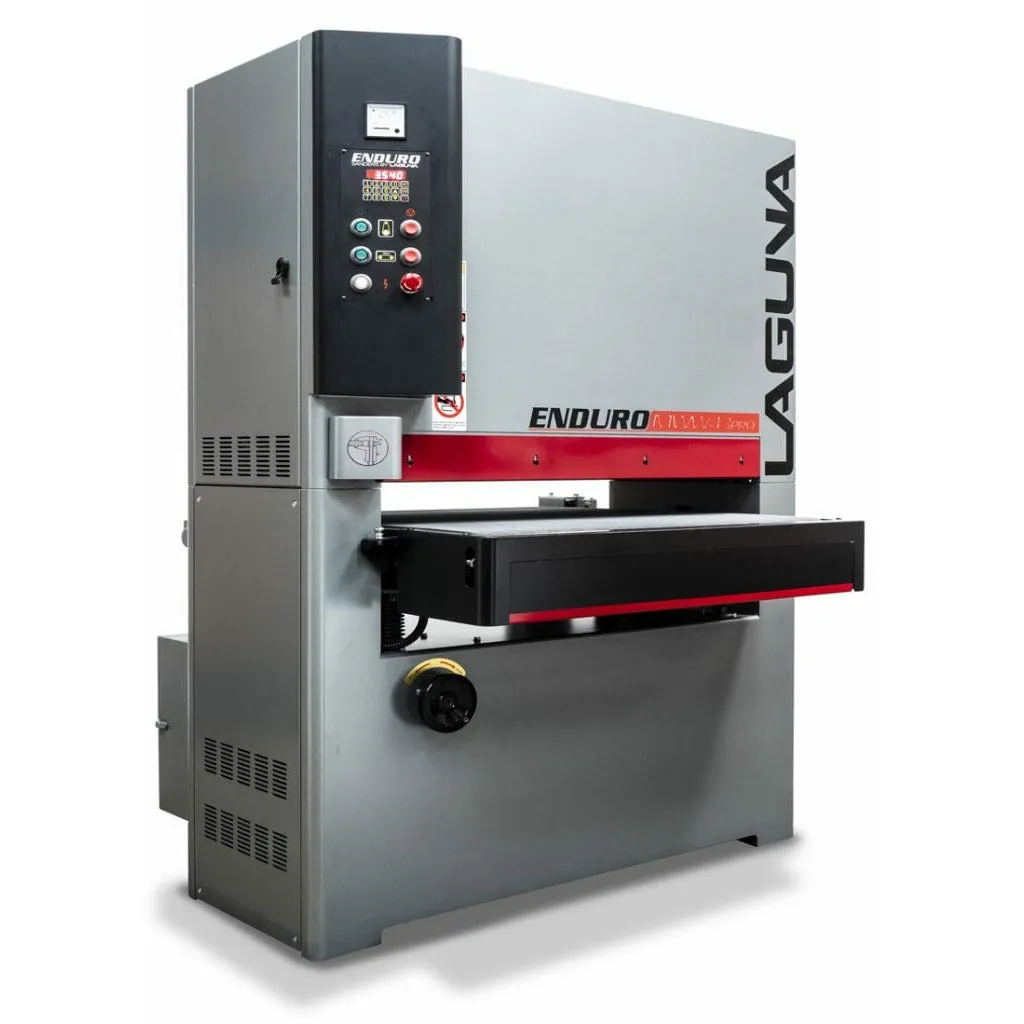

Laguna Tools Industrial 37' Metal Wide Belt Sander, MW37 Pro
Offering metal deburring, sanding, and texturing, the Pro Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 20 to 30 hp motor, 37″ to 51″ wide work table and an auto-height adjustment sensor, you can get the exact finish you need.
Features:
- Single Sanding Head
- 20hp Main Motor / 1HP Conveyor Motor
- Belt Size: 37″ x 75″
- Digital Control Panel With Logic
- Variable 12 – 60 feet/min Conveyor
- Speed Sanding Drum Diameter: 8″
- Dust Port Size: 5″ x 3
An Overview Of The ENDURO Metal Sanders
Follow along as John Geyen, our resident Sanding Expert, gives a detailed overview of the machines, their mechanical specs, and before and after examples from heavy dross removal to fine polishing.
What The ENDURO Can Do
From cleaning heavy dross to achieving a spotless finish, the ENDURO is the only choice for metal sanding and deburring.
Main Belt Motor
Driving the heart of the ENDURO machines, the sanding belt is powered by a main motor up from 20HP – 30HP. In combination with the Conveyor Belt Motor, even heavy drossing can’t stop this machine from finishing your pieces exactly how you need it.
Front Control Panel
Easy one push /- .005 height adjustments and auto-height detection, the Control Panel on the ENDURO makes getting the perfect height happen in seconds.
Auto-Height Adjustment
To get the most accurate sanding or finishing possible, the ENDURO is able to automatically adjust the table height according to what tolerance you need.
Specs
Main Motor: 20HP
Feed Speed: 1HP
Table Lifting Motor: 1/4HP
Programmable Logic Control: YES (Digital Readout)
Automatic Thickness Control: YES (Thicknessor)
Max Sanding Height: 6″
Min Sanding Height: 26 Gauge
Max Sanding Width: 36.5″
Sanding Belt Size: 75″
Diameter of Sanding Drum: 8″
Length of Sanding Drum: 37.9″
Sanding Drum RPM: 1720
Conveyor Speed : 15 - 50 FPM
Dust Port Size: 5″
Number of Dust Ports: 3
Foot Print: 19' x 51 1/2'
Conveyor Height At Lowest Setting: 31.9″ (Table Height 37.4″)
Cabinet: Steel YES
Operating Air Pressure: 60PSI
Sanding Belt Oscillation: YES
Sanding Belt Motor Break: YES
CSA: Fully YES
Net Weight: 1675lbs
Ship Weight: 2006lbs
