Product Details
＋

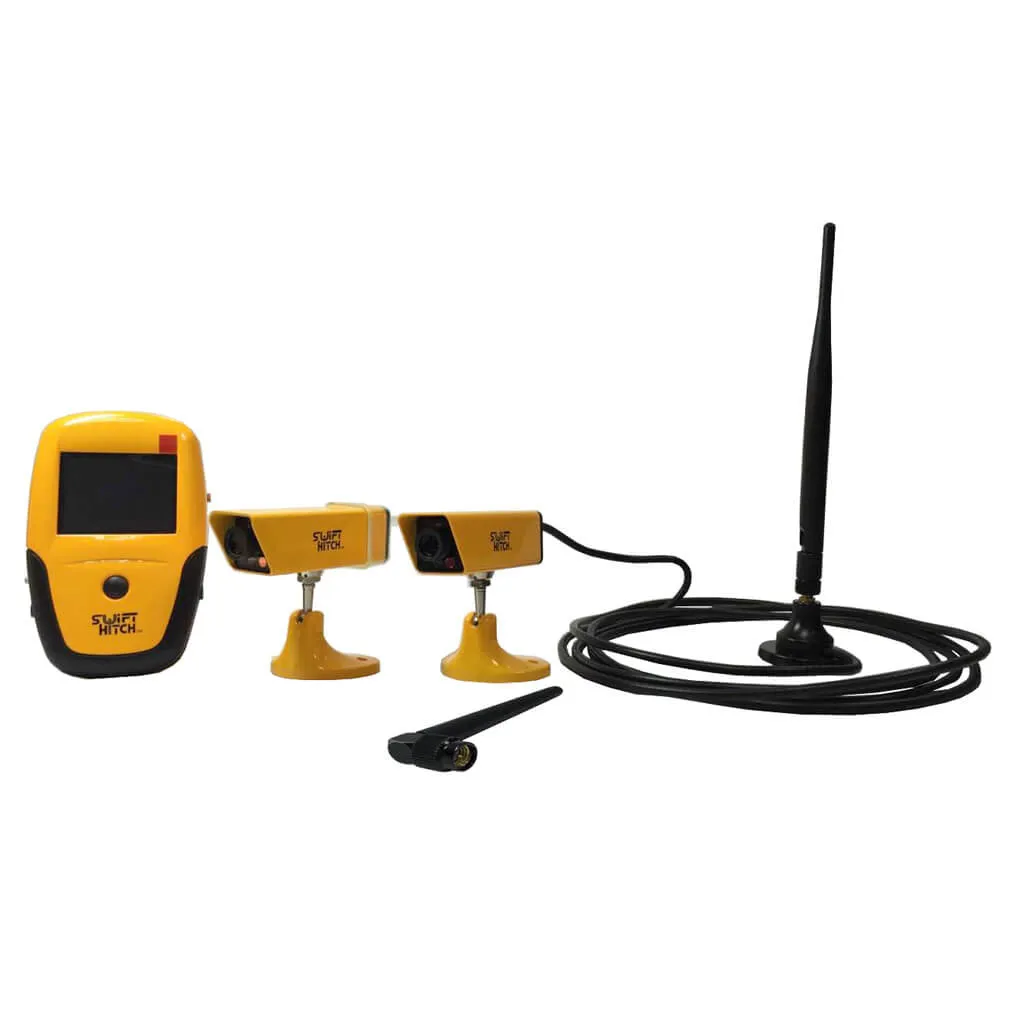

The Portable Wireless 2 Camera Back-up and Monitoring System
The new Swift Hitch SH03 offers the capability to position two portable wireless cameras in separate locations. Both cameras transmit to a high definition color monitor with a toggle switch that allows the viewing of the images from the two cameras.
- Two portable wireless cameras that each have an internal rechargeable battery which allow for up to 10 hours of usage with a full charge
- Full color 2.5” LCD screen with high resolution 960x240, with normal and reverse imaging
- Water resistant cameras that come with a weather guards

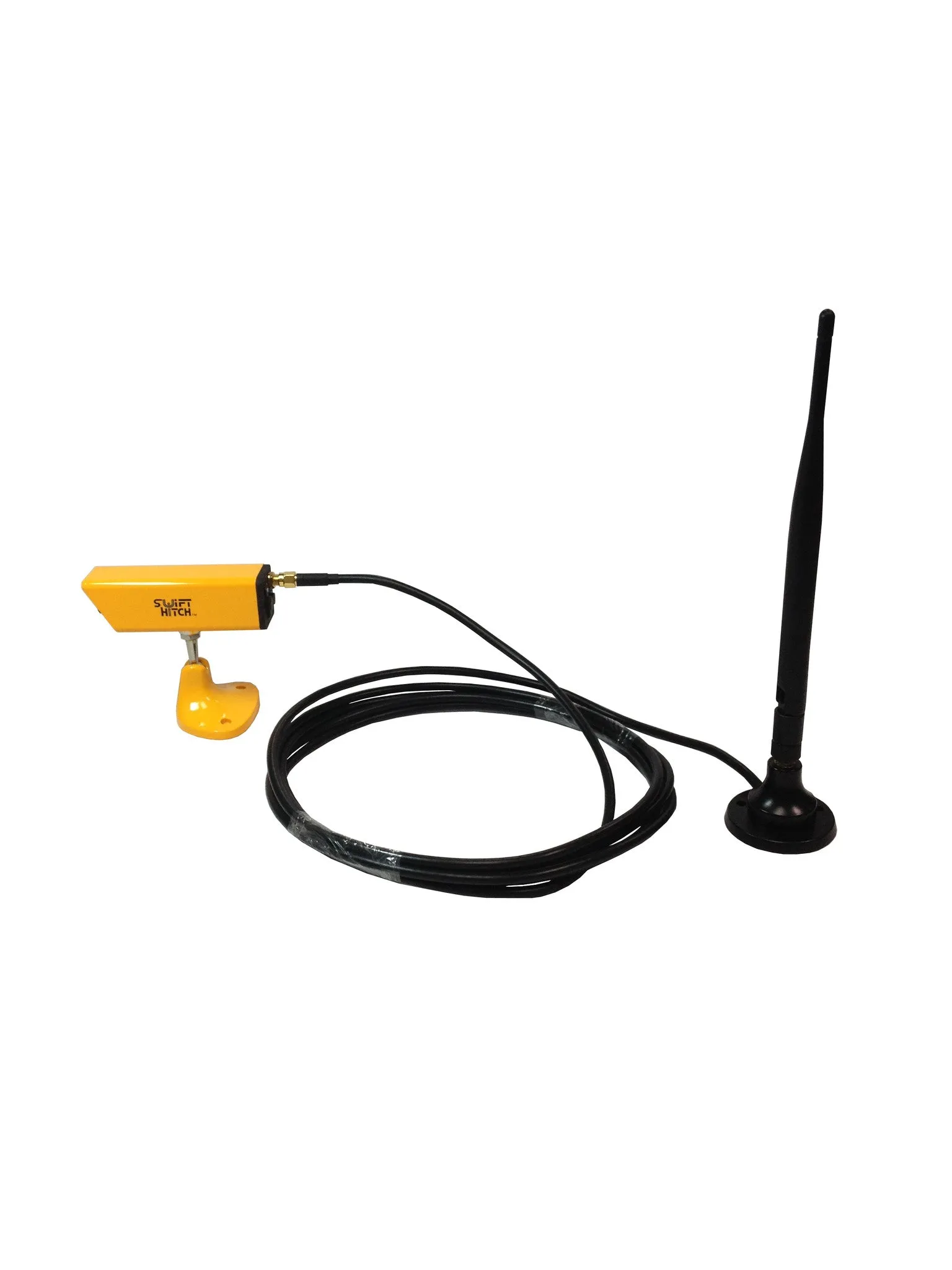

- Extended antenna with a 9 ft cable that attaches to one of the cameras
- Magnetic base on both cameras and triangular suction cup mount which allows a camera to be mounted on a non-magnetic surface
Key Features:
- Two portable wireless cameras that each have an internal rechargeable battery which allow for up to 10 hours of usage with a full charge.
- Full color 2.5” LCD screen with high resolution 960x240, with normal and reverse imaging.
- Top right easily accessible toggle switch to view images from two cameras.
- Extended antenna with a 9 ft cable that attaches to one of the cameras.
- Magnetic base on both cameras.
- Infra-red for night vision on both cameras.
- Both cameras are water resistant.
- Triangular suction cup mount which allows a camera to be mounted on a non-magnetic surface.
- Cigarette lighter charging adapter with two connectors to allow charging of two devices at the same time.
Applications:
- Hitch up a trailer using two views – watch the towing vehicle’s trailer hitch and the trailer being towed.
- Watch horses in a trailer from two different camera positions.
- Monitor the trailer load being towed from two locations.
- Agricultural applications:Watch two bins or silos that are beside each other fill up.
- View the front and rear of any moving equipment.
- View two sides of your truck or trailer.
- Inspections or surveys from two different angles at the same time.
- No installation or wiring is needed.
- One year limited warranty is included.
- SH03 system is based upon proven Swift Hitch technology that has been in existence since 2006 with thousands of satisfied users.
Product illustration:
Specification:
| Item | Value | |
| CAMERA | Imaging Sensor | 1/3" CMOS |
| CMOS Total Pixels | 628 x 582 (PAL); 510 x 492 (NTSC) | |
| View Angle | 55° | |
| Minimum Illumination | 5Lux/F1.2 & 0Lux (IR ON) | |
| Transmission Frequency | ISM 2.400 GHz - 2.483 GHz | |
| Transmission Power | 100mW/CE | |
| Modulation Type | FM | |
| Bandwidth | 18MHz | |
| Power Supply | 12VDC | |
| Battery Type | Lithium-ion Battery- 3.7 VDC | |
| Consumption Current | 180mA & 230mA (IR ON) | |
| Charging Current | 330mA | |
| Charge Time | Up to 4 hours | |
| Working Time | Up to 10 hours | |
| Unobstructed Effective Range | Up to 300 feet/ 100 yards (100 meters) | |
| Night Vision Range | 15 feet (5m) | |
| Dimensions (WxDxH)(mm) | 28 x 90 x 28 | |
| Weight | 5.7oz (156 grams) | |
| RECEIVER | LCD | 2.5" TFT |
| LCD Resolution | 960 x 240 | |
| Receiving Frequency | ISM 2.400 GHz - 2.483 GHz | |
| Demodulation Type | FM | |
| Receiving Sensitivity | -80dBm | |
| Power Supply | 12VDC | |
| Consumption Current | 240mA | |
| Charge Time | Up to 2 hours | |
| Working Time | Up to 4 hours | |
| Dimensions (WxDxH)(mm) | 80 x 38 x 130 | |
| Weight | 5.5oz (156 grams) | |
| Operating Temperature | -10° C - 50° C/ 14° F - 122° F | |
| Storage Temperature | -30° C - 65° C/ -22° F - 149° F | |
| Operating Humidity | 85%RH |
User Manual Download：
